SPREAD-A-BALE
Micro – Specifications
Specifications
| Machine width | 1.780m |
5’10” |
| Machine length | 2.700m |
8’10” |
| Machine body lengh | 2.030m |
8’10” |
| Rear bale guard height | 1.150m |
3’9” |
| Head height down | 1.150m |
3’9” |
| Head height raised | 2,850m |
9’4” |
| Bale width | 1.200m |
4’0” |
| Bale diameter | 1.500m |
5’0” |
| Machine weight | 595 kg |
1,300 lbs |
| Bale weight | 300 kg |
650 lbs |
| Machine + bale weight | 895 kg |
1,950 lbs |
| Loader lift capacity minimum | 1,000 kg + |
2,200+ lbs |
| Loader oil flow | 55 l/min |
14.5 l/min |
Key Information
Horizontal Rotor spreading up to 15m on a 595kg steel chassis for the smaller 1t to 2t lift capacity loaders
-
Ideal for spreading all bales on 1t loaders
-
Single horizontal rotor throwing straw up to 15m
-
595kg lightweight steel chassis and bracketing system
-
Suitable for smaller 1t to 2t lift capacity loaders: Front-end tractor, Skid-Steer and Hoff
-
All mechanical mechanisms are proven components on M Range machines

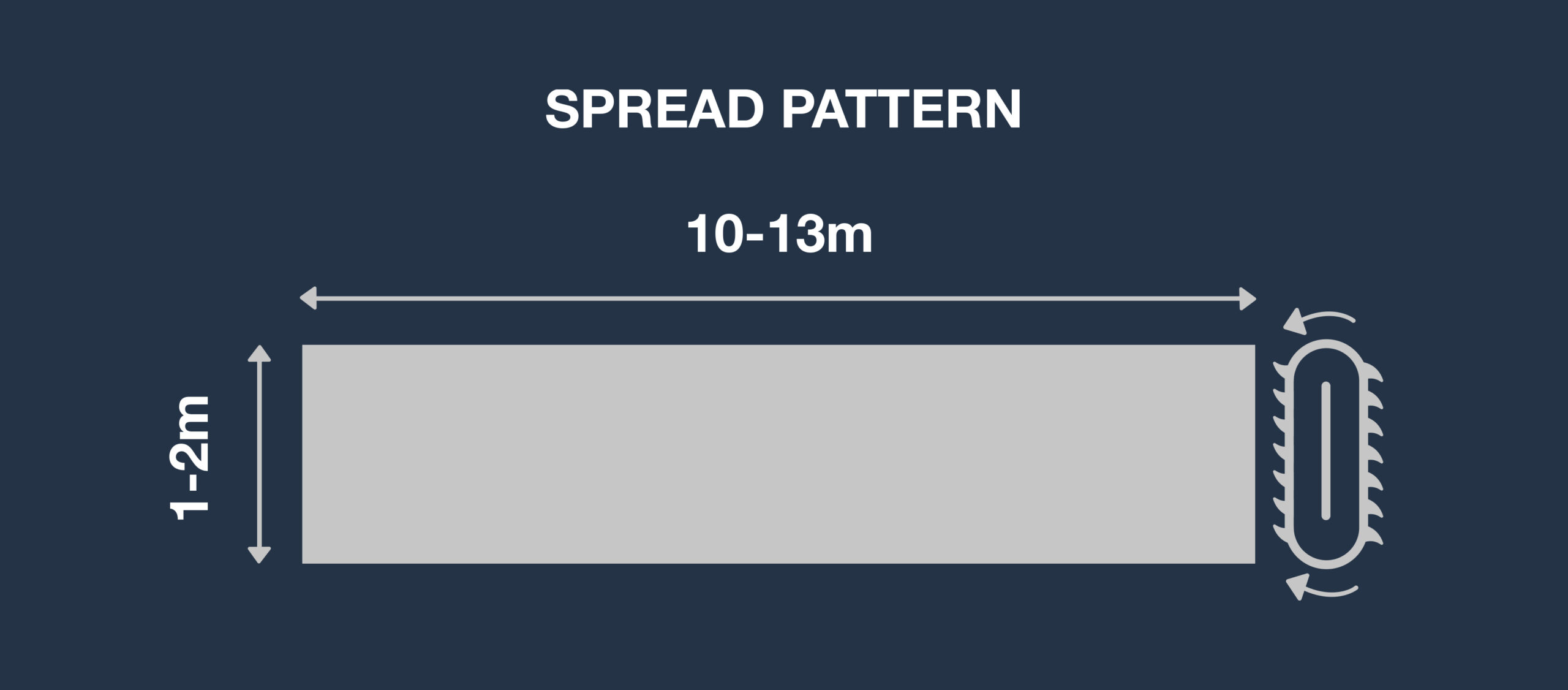

Spread Pattern
Contact sales@spread-a-bale.com for further information and a demonstration
