The Spread-a-Bale Micro is ideal for spreading all types of bales using smaller loaders. Thanks to its lightweight 595kg steel chassis and bracketing system, it’s perfectly suited for machines with a 1t to 2t lift capacity, such as front-end tractors, skid-steers, and compact loaders (Hoftracs). Its powerful single horizontal rotor effectively spreads straw up to 15 meters. For proven durability and performance, the Micro uses the same reliable mechanical components found in the company’s heavier M Range machines.

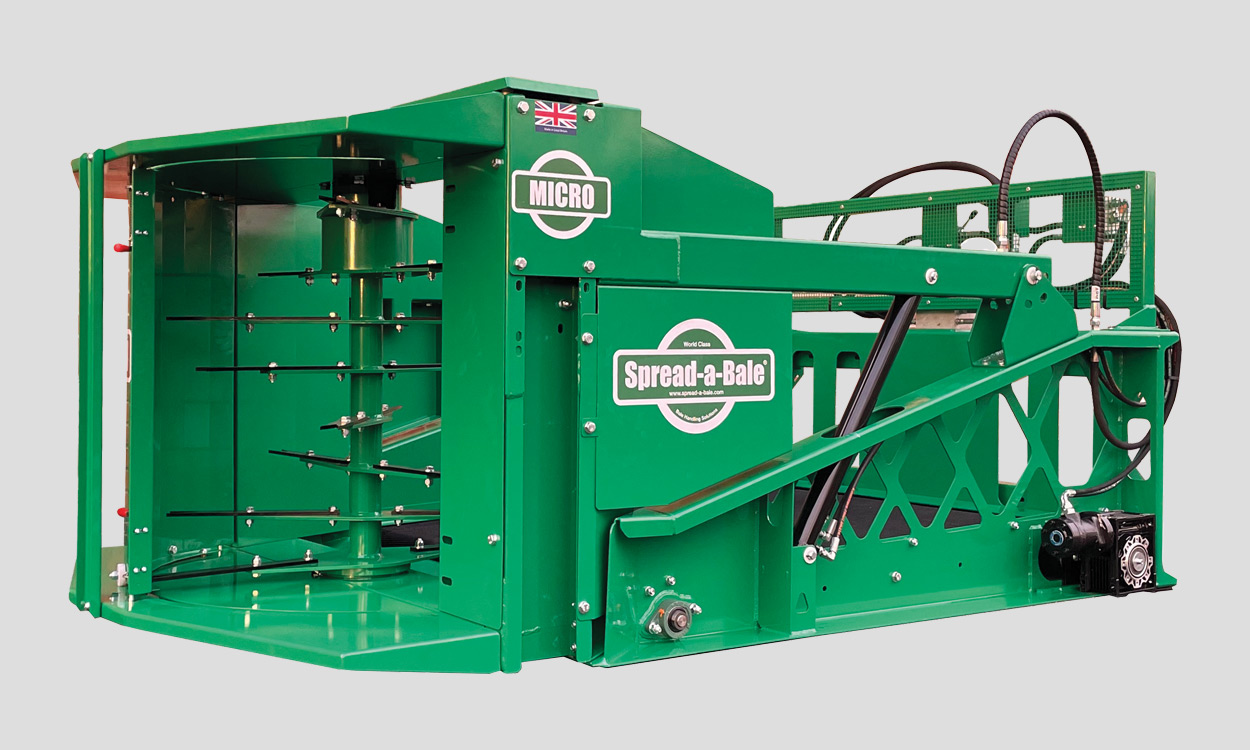

Spread-a-Bale Micro
-
Ideal for spreading all bales on 1t loaders
-
Single horizontal rotor throwing straw up to 15m
-
595kg lightweight steel chassis and bracketing system
-
All mechanical mechanisms are proven components on M Range machines
Specification
Spread Pattern
| Machine width | 1.780m |
5’10” |
| Machine length | 2.700m |
8’10” |
| Machine body lengh | 2.030m |
8’10” |
| Rear bale guard height | 1.150m |
3’9” |
| Head height down | 1.150m |
3’9” |
| Head height raised | 2,850m |
9’4” |
| Bale width | 1.200m |
4’0” |
| Bale diameter | 1.500m |
5’0” |
| Machine weight | 595 kg |
1,300 lbs |
| Bale weight | 300 kg |
650 lbs |
| Machine + bale weight | 895 kg |
1,950 lbs |
| Loader lift capacity minimum | 1,000 kg + |
2,200+ lbs |
| Loader oil flow | 55 l/min |
14.5 l/min |
