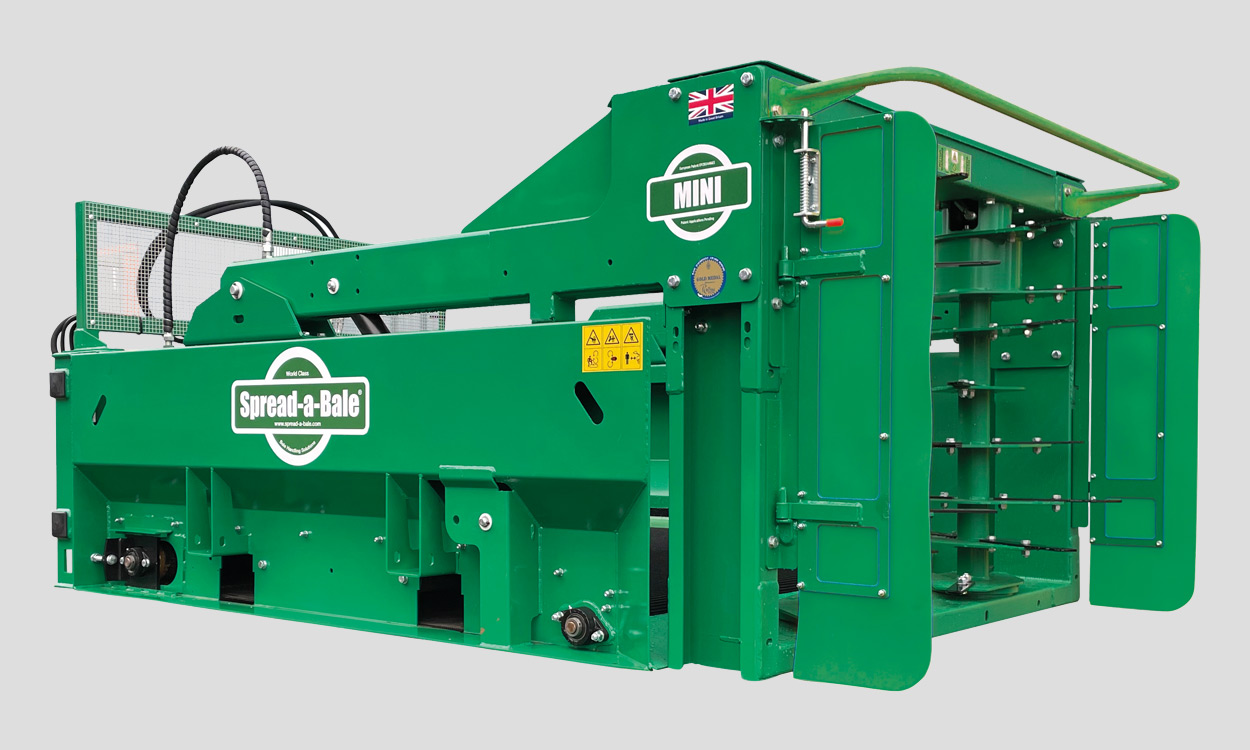

Spread-a-Bale Mini

The Spread-a-Bale Mini is a compact M-range machine that’s perfect for operations using smaller loaders with a lift capacity from 1.75t upwards. It excels in confined spaces, being highly manoeuvrable with its 1.0m high rotors and less than 3m wide when side-mounted. This versatile unit is truly self-loading from the stack or floor and is ideal for round bales up to 1.6m in diameter, while also handling parts of rectangular bales. It’s incredibly efficient, requiring only one loader to load and spread a bale in approximately two minutes. Built on a design proven for over 20 years, it runs on simple hydraulics (one double-acting spool) with no electrics and is available in either a galvanised or painted green finish.

N
Highly manoeuvrable with 1.0m high rotors
N
Ideal machine for round bales up to 1.6m diameter
N
Can also spread parts of rectangular bales up to 1.0m high
N
Proven design for over 20 years

Request a Demo

Specification

Spread Pattern

Standard Rear Mounted
Machine width	1.700m	5’7”
Machine length	2.750m	9’0”
Machine head height	1.150m	3’9”
Bale guard height	1.150m	3’9”
Machine body length	2.300m	7’6”
Raised head height	2.480m	8’2”
Maximum bale width	1.200m	4’0”
Maximum bale length	1.800m	6’0”
Maximum rectangular bale height	1.000m	6’0”
Maximum round bale diameter	1.600	5’6”
Machine weight	880kg	1,940lbs
Maximum bale weight	350kg	772lbs
Machine + bale weight	1.230kg	2,712lbs

Single Side Mounted
Machine width	2.750m	9’0”
Machine length	1.700m	5’7”
Machine head height	1.150m	3’9”
Machine weight	1,180kg	2,601lbs
Maximum bale weight	350kg	772lbs
Machine + bale weight	1.530kg	3,373lbs
Round bale	1.600mm	5’6”
Rectangular bale sections/wafers	1.800	5’10”
Oil flow	55 l/min	14.5 g/min
Distance thrown	4.5 – 9m	14’9” – 29’6”
